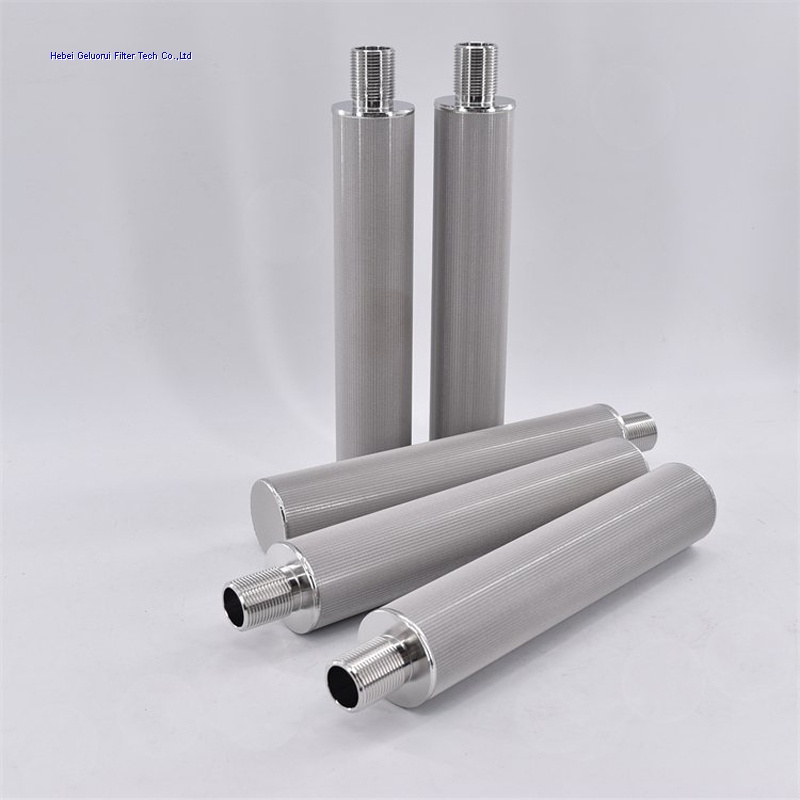

Sintered Metal Filter Elements

Sintered Metal Filter Elements is rolled by multi-layer (usually five layers) 316L or 304L stainless steel wire, sintered by high temperature vacuum, use argon arc or plasma welding to Cylinder.The size and distribution of the holes are adjusted by selecting the wire diameter, the mesh size and the weaving method of the wire mesh.

Features

– Defined permeability and particle size retention
– Good mechanical properties
– Corrosion resistance
– Good back flush flow and durable performance
– High temperature resistance

Specifications

– Dimensions: Wrought into tubes, disc, pleated or customized
– Diameter for tubes: 20 ~ 1000 mm
– Filtration precision: 2 ~ 200μm

Materials of Construction
Stainless steels (304L, 316L)

Applications

Fluidization in steel industry
Powder homogenization
Food & Beverage industry
Filtration, washing and drying in the pharmaceutical industry
