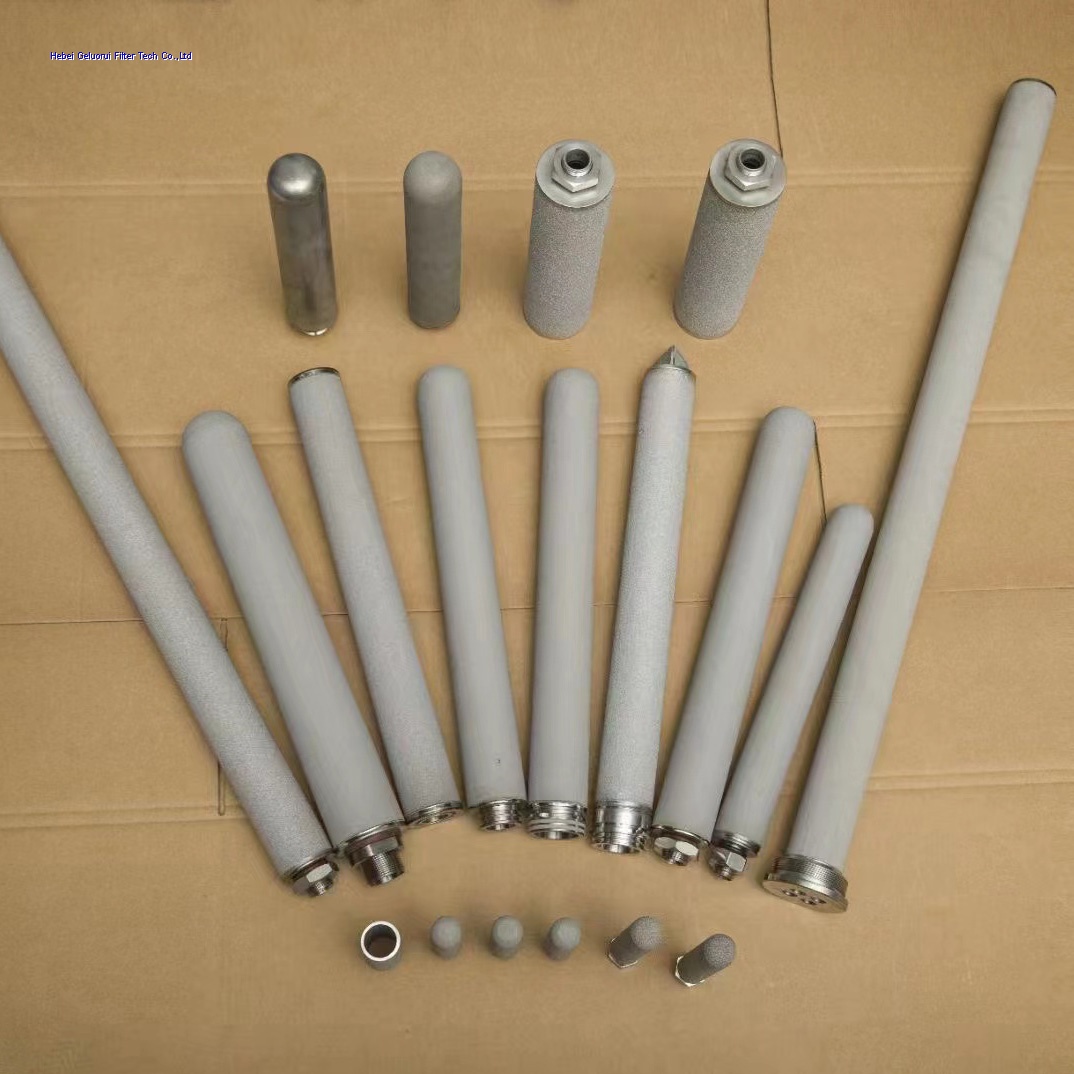

Sinter Powder Metal Filter Cartridge

Sinter metal filter cartridge is manufactured by metal powder without adding adhesive. Formed under isostatic cool pressing and sintered with high temperature vacuum.
The size and distribution of the pores can be controlled by the metal powder.
Geluorui offers a wide range of cleanable all-metal powder filter cartridges for optimum filtration in critical applications.

Features

– High Permeability
– Mean Pore Size & Particle Size Retention
– Capillary Attraction
– Mechanical Properties & Thermal Conductivity
– High temperature resistance, up to 900℃.
– Corrosion resistance
– Good back flush flow and durable performance

Specifications

– Dimensions: Nominal or Customized
– Outside Diameter (OD): 10~400 mm
– Lengths: 10 ~ 3000 mm
– Filtration ration : 2 micron to 200 micron.

Materials of Construction

– Stainless steels (304L, 316L)
– Nickel
– Titanium
– Monel®
– Inconel®
– Hastelloy® B, C and X
– Special materials – Contact Geluorui

Connector Types

M20  m30  215   222   226

Applications

-In-line filtration of industrial processes
-Chemical Processing
-Gas lines in manufacturing equipment
-Petroleum Refining
-Liquid lines in manufacturing equipment
-Power Generation.
