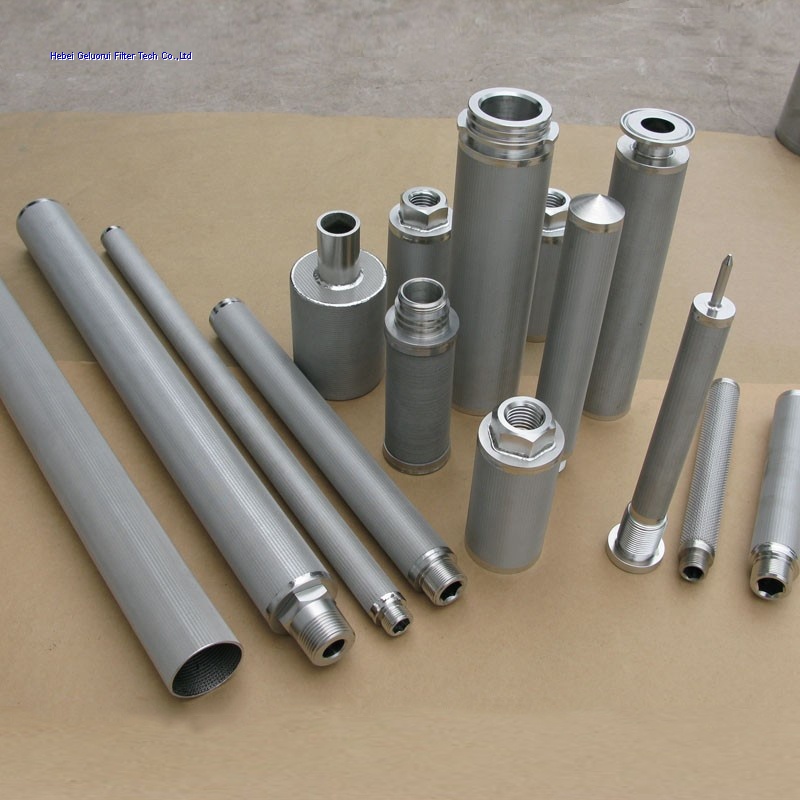

Cylindrical Filter Element

Cylindrical filter element also named sintered cylindrical filter is made from five layers sintered wire cloth mesh , which include protective layer, control layer dispersion layer and two reinforcing mesh. The multi-layers sintered wire mesh are overlapped together before they are sintered in a vacuum sintering furnace. Then the sintered wire mesh is rolled into a cylindrical with components for two ends welded together. They can be processing into different shapes such as circular, cartridge, cone, pleats. Its filtration ration ranges from 2 micron to 200 micron.

Wire Mesh Material:

Multi-layer Sintered wire mesh
standard five-layer sintered wire mesh
sintered square wire mesh ,
sintered Laminated plain Dutch woven wire mesh
sintered perforated and woven wire mesh .
Layer: 5 - 7 layers.
Standard Thickness: 1.7mm.
Filtering Rating: 2- 200 micron.
Filter Media: sintered wire mesh.
Working Temperature: -200 - 600°C.
Working Pressure of Sintered Filter Cartridge: 3Mpa.
Main Connector Connections: Standard connector, snap coupling, thread connection, flange connection, rod connection, special customization.

Package: with bubble wrapping paper, packaged in wooden boxes or according client's requirement.

Directions of Pipe Filter Elements Model: CF-D/L-R
D-Outside Diameter
L-Length
R-Filtration Rating
End Connections Available

NPT / BSP Threaded
Flanged Table E / Table F
ANSI B 16.5 Flanged
DIN Standard
Tri Clover Adaptors
SMS /Dairy End Connection
Sizes of the cylindrical filter elements: Any outline size is available at customer's requirement.

Advantages:

High strength, no need of support
No possibility of media migration occurring
Pipe type stainless steel filter elements have wide operating temperature range
This type of filter elements are strongly corrosion resistant
Pipe filter elements are very easy to clean and offer long service life
Available filtration rating of pipe filter elements (μm): 2, 5, 10, 20, 40, 75, 100, 150, 200

Application :

filtration of polyester, oil products,
chemicals and pharmaceutics,
pure water and gas, also used for flow control
