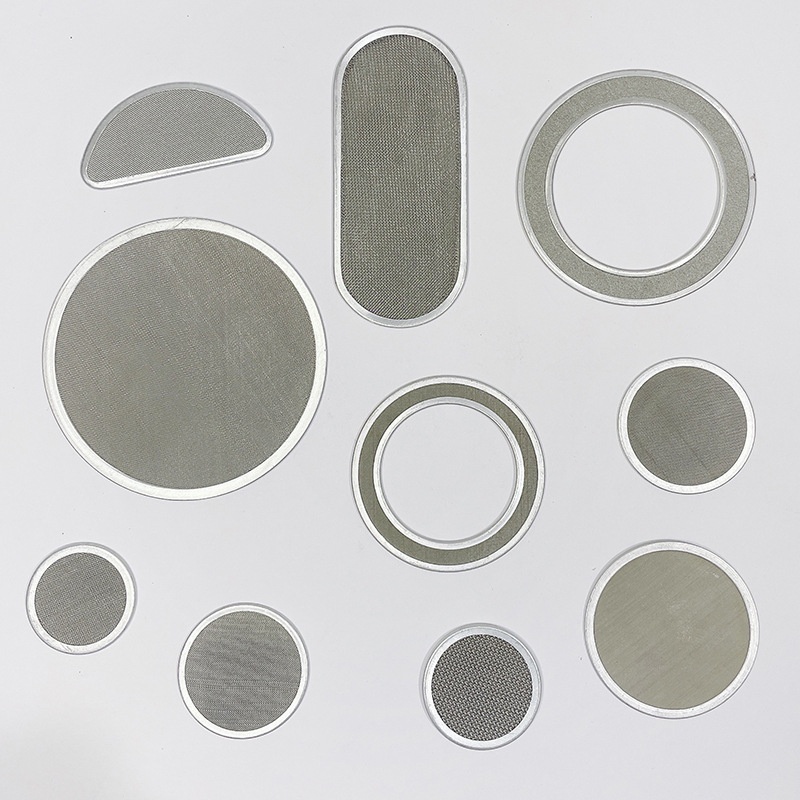

Spin Pack Filters Screen

Spin Pack Filters screen For service to In the processing of producing synthetic fibers,especially filament POY /FDY/ BCF/staple fiber/ nonwoven spinning,To Filtration all the foreign substance.Keeping the polymer should be not leaked out of spin pack containers.Then got excellent polymer melt products .For suitable to manchines types have : series with extrusion filter machine.The raw material have JIS .ASTM.KS BS.AS.and so on Standard. Let all international client got the Excellent products service in here.

Wire Mesh and Bound edge Raw Material:

1.4301/SUS304/AISI304/STS304
1.4306/SUS304L/AISI304/STS304L
1.4401/SUS316/AISI316/STS316
1.4404/SUS316L/AISI316L/STS316L.
Aluminium Plate.

Woven types :Plain woven.Dutch woven.
U Bound  :2.0mm.3.0mm.in normal working .
U Bound plate thickness :0.4mm,0.5mm.0.8mm with Aulum.Stainless steel ,
With spot welding craft.
Layer:single,double,Three, Five layer,multilayer. Sintered ,U-bound.
polymer pack filter screen Diameter:36mm,48mm,55mm,60mm,65mm,90mm.101mm,150mm.250mm.300mm and so on .
Microns of size :25μm-800μm,Others size we can process and made of your offer and request.

Applications:

Polyester Oriental Yarn.
Polyester Stable Fibers.
Polypropylene Yarn.
Nylon and Acrylic Yarn.
BCF Polypropylene Yarn.
Polypropylene Spun bonded Non-woven Fabrics.
