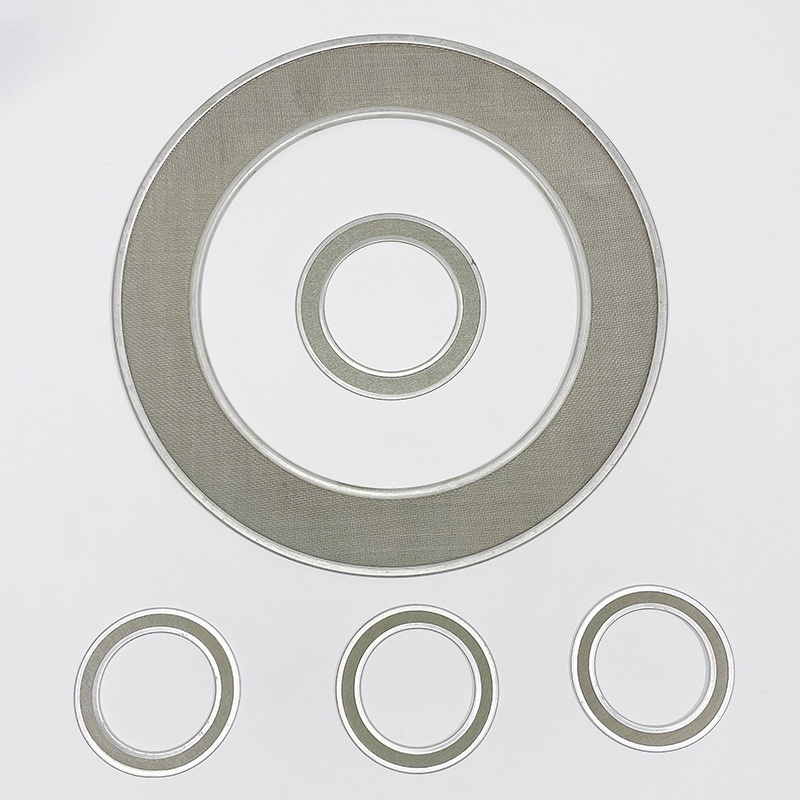

Rimmed Filter Screen

Hebei Geluorui Filter can offer you a complete set of Assembly used inside spin pack body, such as polymer Filter Mesh, Rimmed Filter Screen,Ring,Spinneret, gaskets and so on .
The polymer Filter Screen service to In the processing of producing synthetic fibers,especially filament POY /FDY/ BCF/staple fiber/ nonwoven spinning, To Filtration all the foreign substance.
Keeping the polymer should be not leaked out of spin pack containers.Then got excellent polymer melt products

Raw Material:

1.4301/SUS304/AISI304/STS304
1.4306/SUS304L/AISI304/STS304L
1.4401/SUS316/AISI316/STS316
1.4404/SUS316L/AISI316L/STS316L.


Woven types :Plain woven.Dutch woven.
U Bound  :2.0mm.3.0mm.in normal working .
U Bound plate thickness :0.4mm,0.5mm.0.8mm with Aulum.Stainless steel or Copper Ring
Layer:Five layer,U-bound craft
Type: single-layer, multi-layer
Shape: circle, ring, oval, rectangular,
Structure: customer-specific
Filtration rate: 1μm-500μm process-specific design

Disc Diameter:

36mm,48mm,55mm,60mm,65mm,90mm.101mm,150mm.250mm.300mm and so on .
Microns of size :25μm-800μm,Others size we can process and made of your offer and request.

Application:

Polyester Oriental Yarn.
Polyester Stable Fibers.
Polypropylene Yarn.
Nylon and Acrylic Yarn.
BCF Polypropylene Yarn.
Polypropylene Spun bonded Non-woven Fabrics.
Granulate production (monomer ,polymers)
Raw material and smi-finished
Products (tube ,panel ,profiles ,pipes) Rubber processing
Filment production (yarms,filaments ,Fleeces)
woven fabrics, color master batch,plastic and PVC granulation,
sheet extrusion, carbon fiber.Pressure line filters.
